Name: FreeScan Combo
Availability: OutOfStock

‌
‌
‌
‌
‌

Accuracy of 0.02 mm, meeting various industrial measurement needs.

VCSEL infrared light source, convenient and efficient.

Smallest size in the series, optimized lens angle, capable of measuring in confined spaces.

Suitable for measuring complex molds, regardless of shape.

Capable of precision injection mold inspection.

Capable of deep hole scanning.

Online control software updates, providing the best service.

Highlights

Two combinations, four modes.

The innovative combination of blue laser and VCSEL infrared light sources creates four scanning modes, suitable for a wider range of scanning scenarios. (VCSEL infrared light source is optional.)

Lightless scanning, no need for stickers.

Using the VCSEL light source, there's no need for stickers, making it efficient and convenient. The scanning process uses no visible light, harmless to the eyes.

Easily adapt to tight spaces.

The smallest in the FreeScan series, making it suitable for working in confined spaces. The optimized lens angle allows for complete data capture of narrow slits and deep holes.

High precision meets your needs.

With an accuracy of 0.02 mm, it meets industrial measurement requirements with stable accuracy and highly consistent results across multiple measurements.

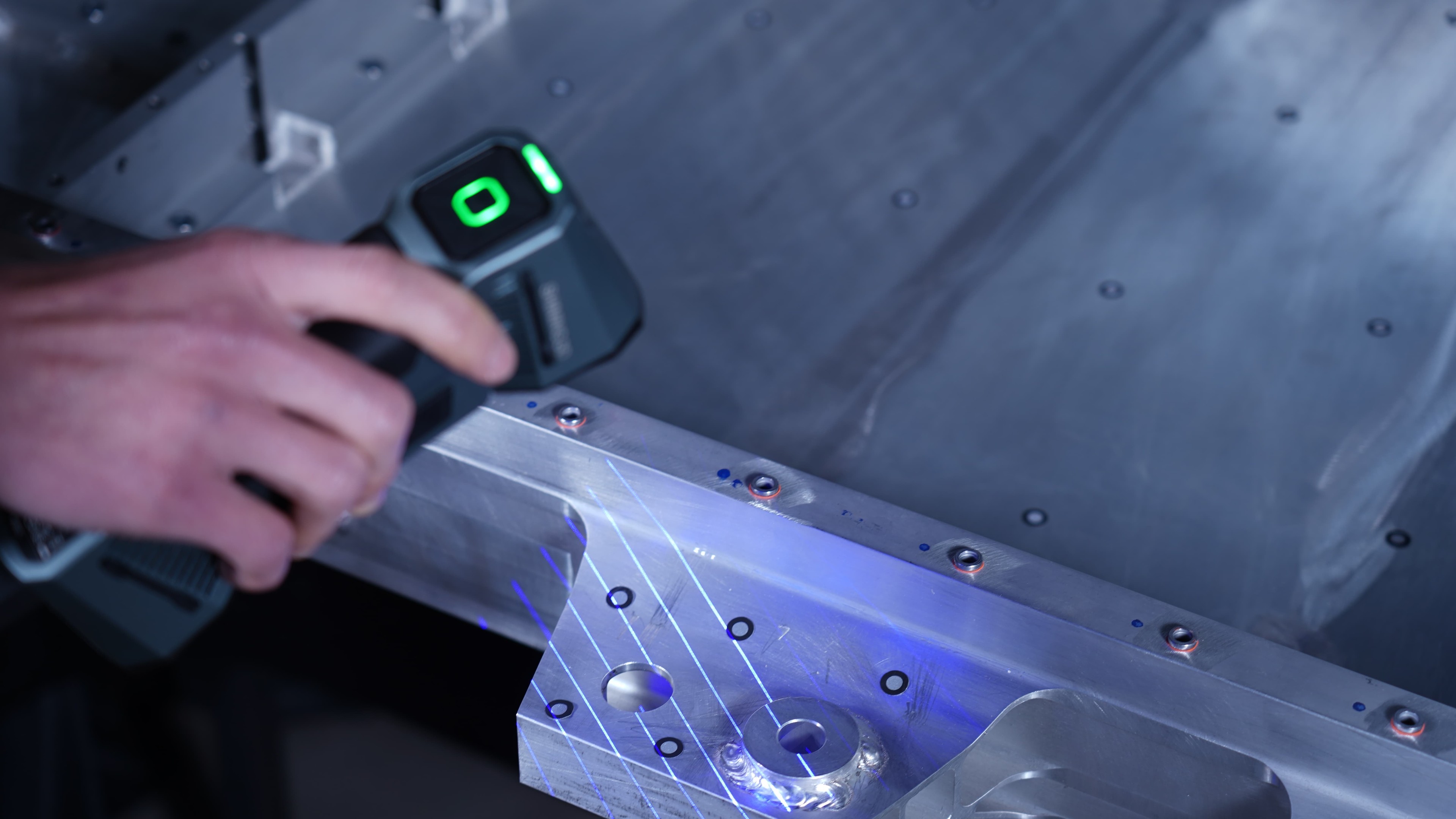

High-speed scanning, smooth and efficient.

26 laser lines of high-speed scanning, combined with optimized software algorithms, enable fast and smooth scanning, accelerating the overall scanning process.

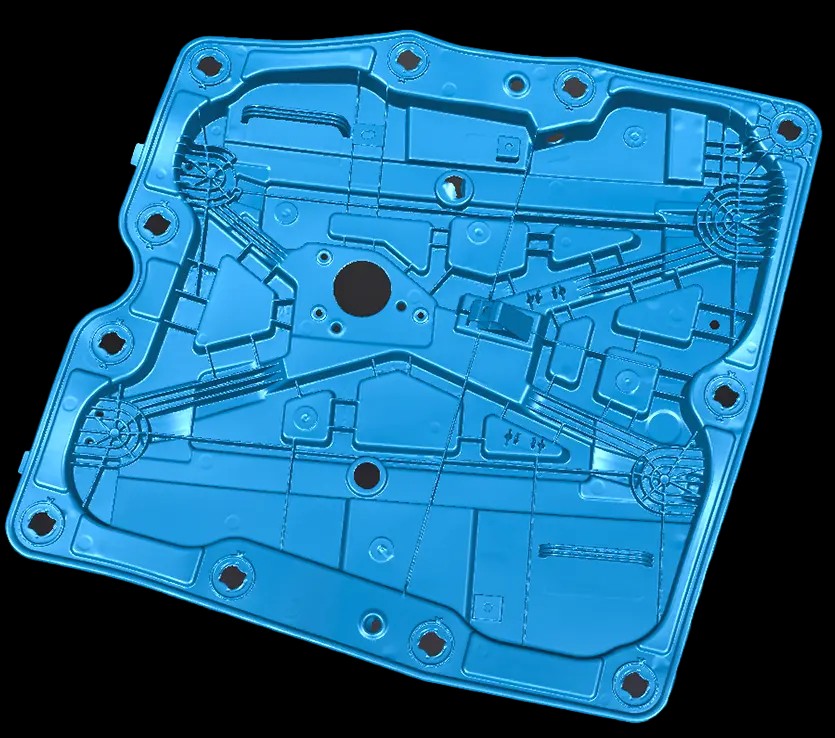

Detailed scanning, high-definition reproduction.

Using 7 parallel laser lines, fine features are accurately reproduced, and combined with the local precision scanning function, efficiency and detail are both achieved simultaneously.

Wide material compatibility.

Compatible with black and highly reflective surfaces, reducing the need for powder coating and achieving more efficient scanning.

Have questions about this product?

Get in touch with us

		FreeScan Combo	FreeScan Combo+
Scan modes	High-speed scanning	26 laser lines	50 laser lines
	Precise scanning	7 parallel laser lines	7 parallel laser lines
	Deep hole scanning	1 single laser line	1 single laser line
	Scanning without spotting	VCSEL (Optional)	VCSEL
Scan accuracy		0.02 mm
Volumetric accuracy		0.02 mm + 0.033 mm/m
Point distance		0.05 mm - 10 mm (Adjustable)
Scan speed		1,860,000 points/s	3,600,000 points/s
Max. FOV		600 mm × 600 mm
Working distance		300 mm
Scan depth		550 mm
Laser class		Class Ⅱ(eye-safe)
Connectivity		USB 3.0
Dimensions		193 mm x 63 mm x 53 mm
Weight		620 g
Power input		12V，5.0A
Operating temperature range		-20°C ~ 40°C
Operating humidity range		10% RH ~ 90% RH
Certifications		CE，FCC，ROHS，WEEE，FDA，UKCA，IP50
Recommended computer configuration		System: Win10 and above, 64-bit; Graphics card: NVIDIA series, RTX 4060; Video memory: 8 GB; Processor: I7-13700h and above; Memory: ≥64 GB

Applications

Automotive Industry

Electronics and Electrical

Education and Research

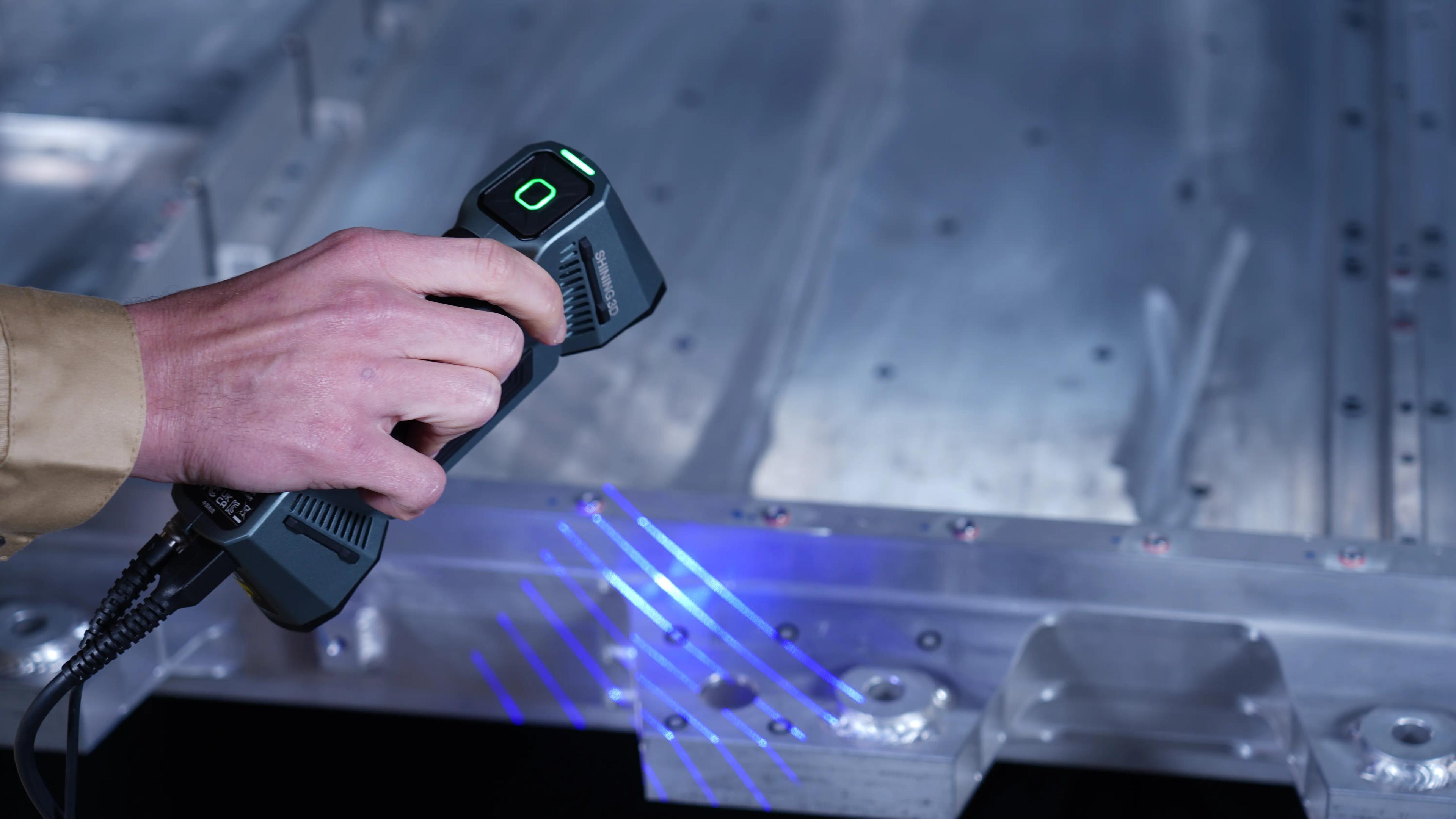

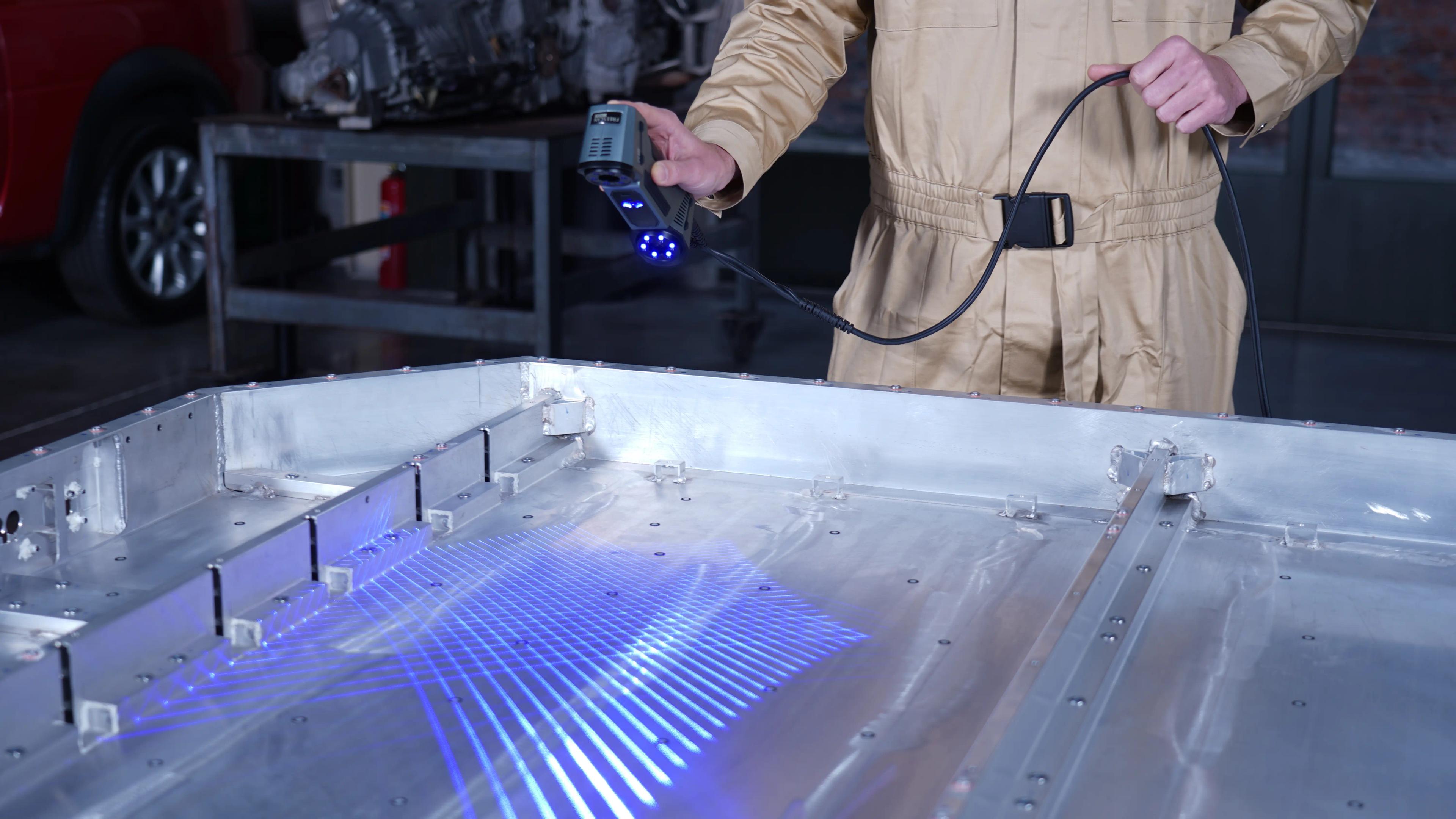

Application Cases
